Plastic Tube PVC Pipe Inside Diameter 1MM - 30MM,Plastic PVC Electrical Wiring Protection Tube

Certification : SGS

Place of Origin : China

MOQ : 3000meters

Price : Negotiate

Payment Terms : TT

Supply Ability : 50000meters per day

Packaging Details : roll

Delivery Time : 5-7days

Material : Flexible PVC

Diameter : 1~30mm

Thickness : 0.35~0.7mm

Color : black/grey/blue/orange/transparent

Contact Now

Flexible plastic pvc tube

Features:
1. Material: polyvinyl chloride, called PVC
2. Working temperature: -30~+105 ºC
3. Flexible, Soft, Flame retardant
4. Color: Black, clear, red, blue, green, etc.

Technical Data

Item		Unit	Test Method	Numerical Value
				HCY-3	HCY-6
Voltage rating		V		300	600
Temperature rating		ºC	UL224	105
Voltage resistance	Before aging		UL224 23ºC	2500V/60sec
	After aging		UL224 136ºC 168hr	2500V/60sec
Volume resistivity		Ωcm	UL224	≥1010
Tensile strength	Before aging	Mpa	UL224 23ºC	≥10.4
	After aging	Mpa	UL224 136ºC 168hr	≥7.3
Elongation	Before aging	%	UL224 23ºC	≥100%
	After aging	%	UL224 136ºC 168hr	≥100%
Flexibility			UL224 136ºC 168hr	No cracking
Heat shock			UL224 180ºC 4hr	No cracking
Cold bend			UL224 30ºC 1hr	No cracking
Copper stability			UL224 136ºC 168hr	No corrosion
Flame resistance			UL224	VW-1

Plastic Tube PVC Pipe Inside Diameter 1MM - 30MM,Plastic PVC Electrical Wiring Protection Tube

Product Tags:

flexible pvc pipe

braided pvc tubing

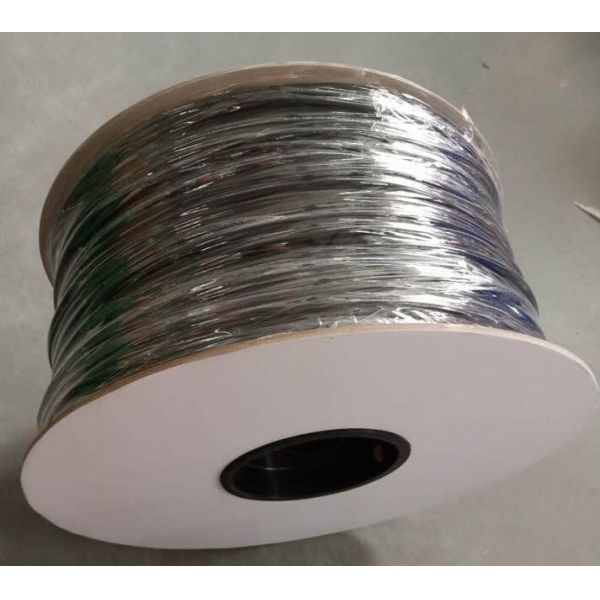

Plastic Tube PVC Pipe Inside Diameter 1MM - 30MM,Plastic PVC Electrical Wiring Protection Tube Images
